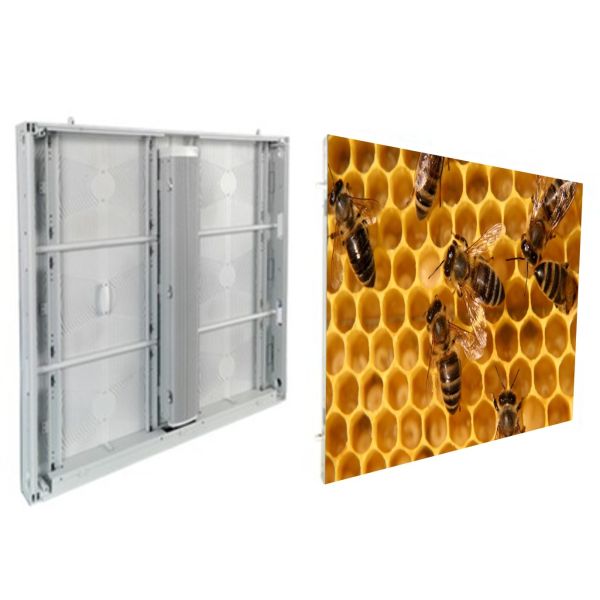

P5.7 Outdoor Fixed LED Display 28kg/Cabinet >6500nits For Swimming Pool
The P5.7 Outdoor Fixed LED Display meets TUV 5VB fireproof certification and combines an aluminum chassis with IP65 multi-layer waterproof protection for dual safety. Its all-aluminum heat sink and partial voltage power supply enable low-temperature operation and extended lifespan. The hard-wired design ensures structural stability, while the slim 77mm profile and 32kg/m² weight simplify installation and maintenance. The module’s left/right interchangeability reduces operational costs.
Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor using.
- Front & Rear service: Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- High brightness: Customized module PCB and designated power supply make it up to 6500nits brightness.
- Wide viewing angles: Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation: Simple internal cables connection and positioning pins, quick and easy installation.
Technical Parameters
| Item | P5.7 | P6.67 | P8 | P10 |
| Pixel Pitch | 5.7mm | 6.67mm | 8mm | 10mm |
| Module Size | 480*320mm |
| Cabinet Size | 960*960*77mm |
| Working Voltage | 3.2/4.2V |
| Scan Mode | 1/7 | 1/6 | 1/4 | 1/2 |
| Cabinet Material | Aluminum Profile |
| Cabinet Weight | 28kg/cabinet |
| Brightness | >6500nits |
| Power Consumption | 650/228w/m2 | 540/2189w/m2 | 650/228w/m2 | 650/228w/m2 |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Refresh Rate | ≥3840Hz |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | ﹣20~50℃ |
| Operational Humidity | 10%~90%RH |
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: Can you accept a sample order?
A1: Yes, we welcome sample orders for quality testing. You can choose any item you're interested in.
Q2: How can we guarantee quality?
A2: Quality is our highest priority. Each product is thoroughly assembled, rigorously inspected and tested to meet strict standards before being securely packaged for shipment.
Q3: What's your delivery time?
A3: 7-15 days according to order quantity and season.
Q4: Do you have any MOQ limit for LED display order?
A4: Low MOQ, 1 square meter or a module checking is available. And the price is negotiable for large quantities.
Q5: Is it OK to print my logo on the products?
A5: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q6: How long is the warranty?
A6: Yes, a two-year warranty for all products.
Q7: To order a display, what kind of information do I have to offer you?
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
